Tial MVS wastegate

Description

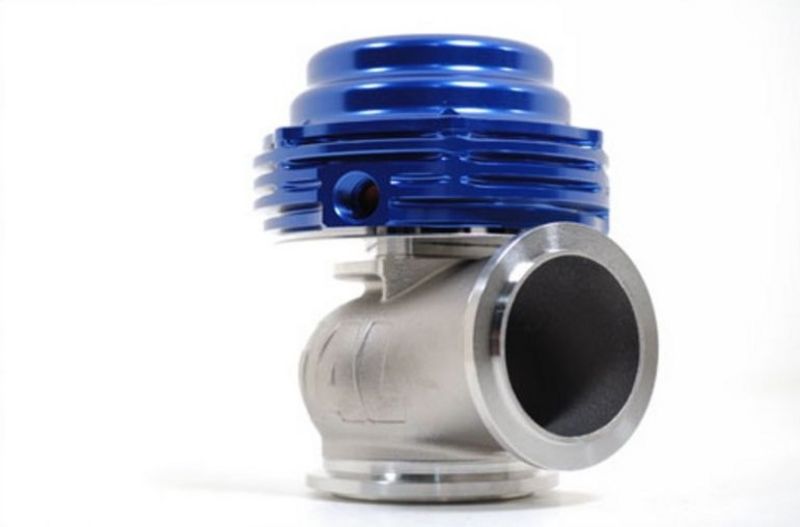

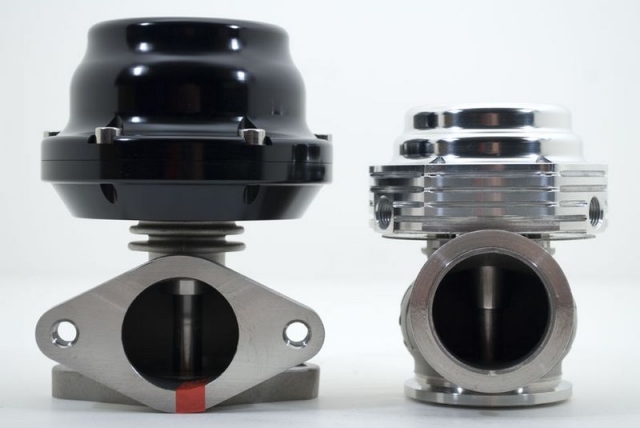

Tial MV-S38mm External Wastegate. Brand new 2009 release! TiAL will be replacing the F38 wastegate with the new MV-S wastegate. Small was on our mind when we developed this new ultra compact wastegate. It stands only 3.7″ in height vs the current F38 which is 4.85″ Other features include 3 bottom pressure ports for easy install and a top mount pressure port that can be rotated 6 different ways. No more bolts or gaskets and all configurations are leaded fuel safe. we also altered the way the diaphragm sits so it is virtually impossible to pinch. Now shipping in all colors.

– High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.

• High temperature silicone Nomex reinforced actuator diaphragm.NOTE:MVS wastegates are now coming with all springs in the box, meaning you can install any bar pressure you want in the wastegate up to 1.7bar.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resists “relaxing” at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing the same material used in the higher level gates for reliability and longevity.
• CNC Machined 304L 12mm thick weld flanges.
• Made is USA.
• Color anodized 6061-T651 aluminum actuator (Silver, Red, Blue, Purple, Black).
• Wastegates shipped with air fittings and stainless hardware.
• Flanges are an extra cost, they do not come with the wastegate unit.
• Custom colors are available, and are $15 extra. Please email us your color choice after purchase.
• Available in Silver(standard color), Grey, Red, Blue, Purple, and Black.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist “relaxing” at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
• All Stainless Steel hardware.
• Mating weld flanges are 304L
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
• 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
• Ultra compact design fits in very tight spaces, the unit stands only 3.7″ tall, more compact than any other external wastegate on the market today.
• V-Band inlet and outlet make install easy, flanges and clamps are in the box!Included with every Tial MV-S:
• MV-S Assembly
• MV-S Valve Seat
• Inlet V-band clamp
• Inlet Flange
• Outlet V-Band Clamp
• Outlet Flange
• 2 TiAL Air Fittings
• Plugs for unused air portsTiAL V-Band Clamps TiAL Designed V-Band Clamps and Flanges are manufacture in house. cnc machined Stainless steel clamps and cnc machined flanges ensure a secure and pressure tight fit.TiAL Racing Valve Stem TiAL’s MV-S is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.Spring Pressures Selecting WG Springs “click here”

  Available Flanges and Materials 304L Stainless Steel Replacement Weld Flanges

  Wastegate spring pressure MV-S, “click here”
  Installation Diagram “click here”
