EFR 7163

Description

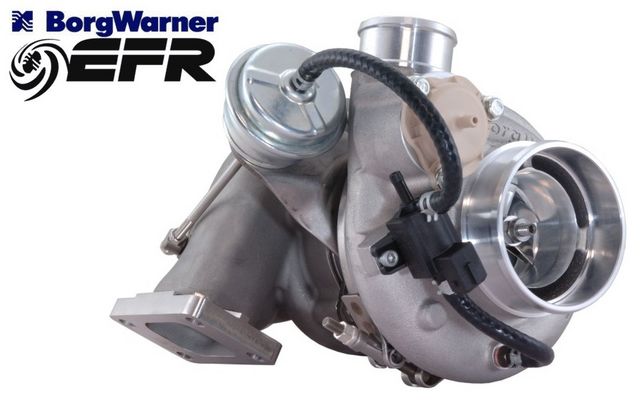

BorgWarner EFR7163 Turbo (11637105000)
The highest power small-frame EFR turbo, EFR7163 is Designed specifically for competitive racing use.  State of the art ‘Mixed-Flow Gamma-Ti Turbine Wheel’ design allows for remarkable spool and huge powerbands. This unique turbocharger is literally an off-the-shelf Indycar turbocharger, used by all current IRL teams.

Turbo Features:

► Mixed Flow Gamma-Ti turbine wheel
► Forged milled extended tip compressor wheel
► Military-grade dual ceramic ball bearing assembly with silver plated metal cage
► Stainless steel turbine housing
► Water cooled light-weight Aluminum bearing housing
► Large internal wastegate (optional)
► Compressor recirculation valve (aka BOV)
► Boost control solenoid valve
► T25, T4 and V-Band Turbine Housing options to fit a variety of installations

Compressor Specifications

► Compressor Type:Forged-Milled Wheel (FMW) Extended Tip
► Compressor Wheel OD (exducer): 71mm
► Compressor Wheel Inducer: 57mm
► Compressor Wheel Trim:64
► Max Flow Rate: 60 lb/min
► Compressor Housing:2.5″ hose coupler inlet, 2.0″ hose coupler outlet
► Built-in BOV: All EFR compressor housings incorporate an integrated BOV.

Connections:

► Inlet: 2.5″ Hose Coupler
► Outlet: 2.0″ Hose Coupler
