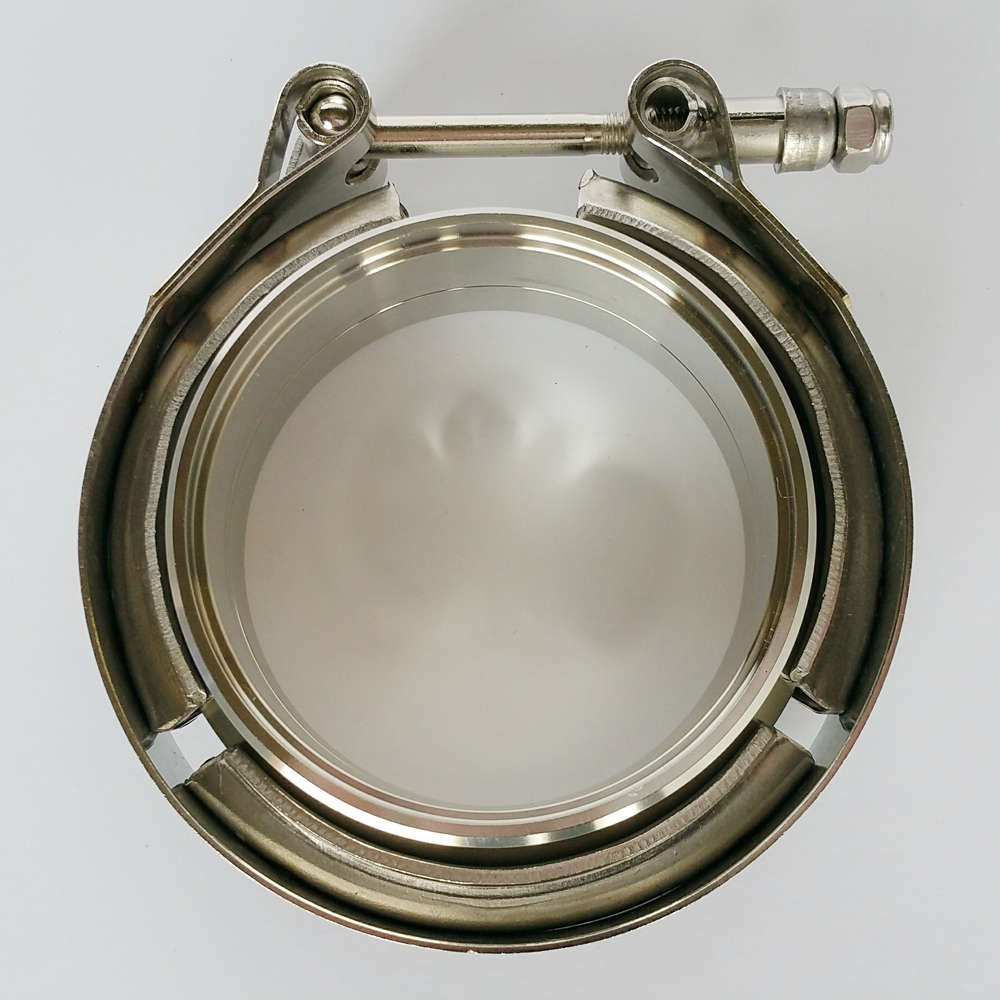

V-Band Assembly 304 Stainless “Male/Female”

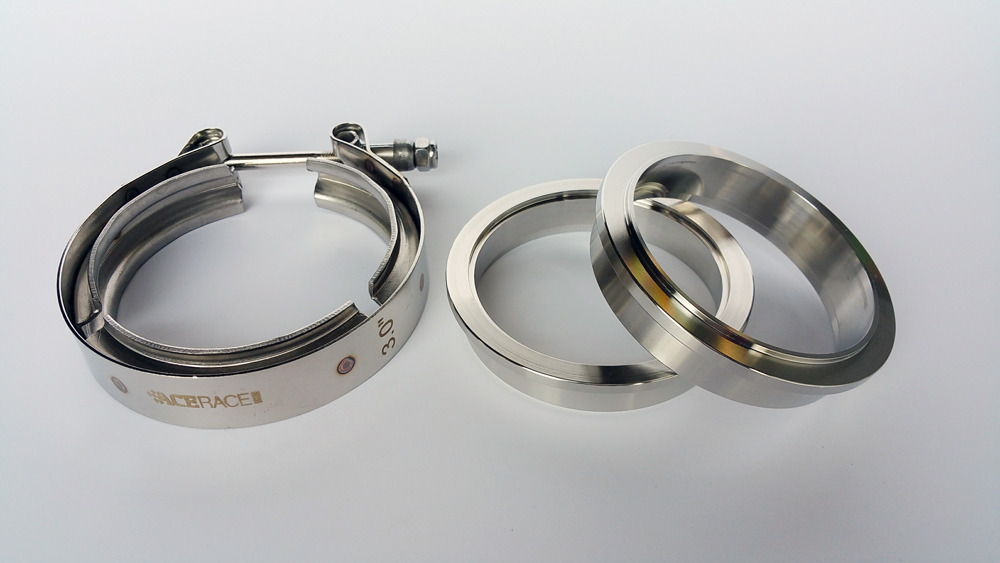

Assembly includes one (1) t-bolt style clamp and two (2) flanges.

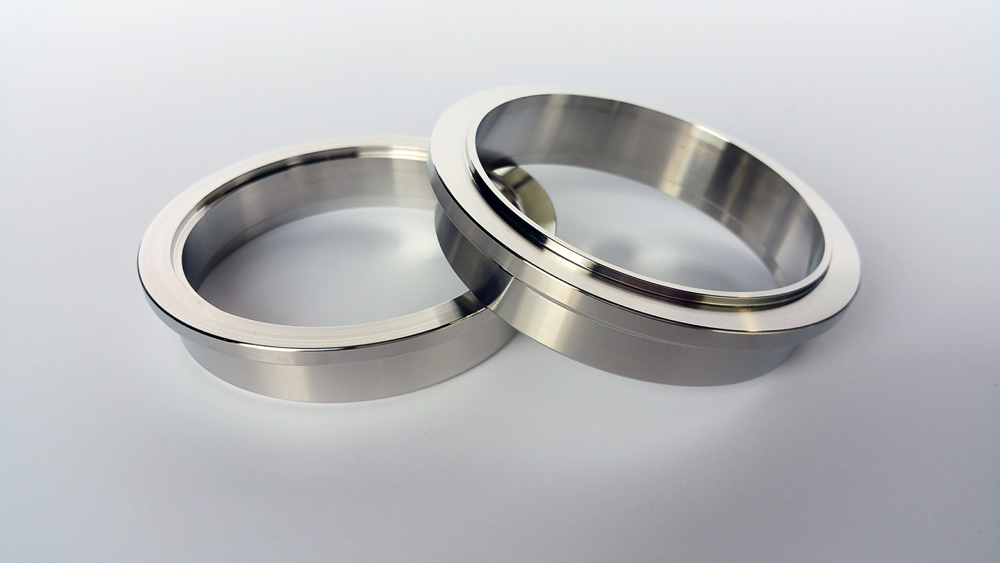

This V-Band Assembly utilizes 304 stainless flanges that have a “Male/Female” seating surface to ensure proper alignment during installation. The butt-weld side of the flanges offer a small recess that allows the flange and tube to be aligned better prior to welding.

Please note: Our V-Band clamps are supplied with a nylon lock nut. This type of nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-threaded the lock nut may cause damage to the “T-Bolt” section of the clamp. In some cases, excessive force can damage and/or break the “T-Bolt” section of the clamp. If you intend to use our clamps during the mock-up process please use a standard finished hex nut (non-locking).

We are not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. The thread pitch of our lock nuts and threaded portion of the “T-Bolt” section of the clamp is 1/4″-28 (fine thread).
